Process Data to ELSA

Process Data to ELSA

Introduction

It seems the useful things ELSA can help a security professional with are endless. A couple of weeks ago I thought it would be interesting to include a snapshot of running process data from Windows hosts in ELSA. Therefore, I wrote a simple script in Python to input a list of hosts, by IP address, capture all the running processes via WMI, and send them to the ELSA via syslog. If you want to use this script but do not have Python installed on a machine, I created a Windows executable.  Check my GitHub account to download the Python script/Windows executable, MySQL file to alter the ELSA database schema and XML file for appending patterndb.xml  used with syslog-ng. First let's take a look at how to configure ELSA for use with the script and then we will look at what you can do with it.

Setup

For this example I will assume you downloaded the Windows executable version of my script. You will also want to download patterndb_process.xml and PROCESS_db_setup.sql. First cut all of the text from patterndb_process.xml and add it to patterndb.xml as shown.

Next, update the MySQL database schema and restart syslog-ng since you modified patterndb.xml.

# mysql < PROCESS_db_setup.sql
# service syslog-ng restart

Now your ELSA installation should be configured and ready to accept syslogs containing Windows process data.

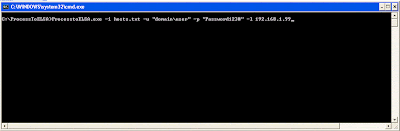

Go to the Windows host which you will want to run the script from. It might be helpful to create a separate folder. Copy the script into that folder and create a text file containing the list of hosts which you plan on analyzing process information. The script reads one address per line. The script will require a hosts file with which to pull syslog data from (-i), a Windows username (-u) and password (-p), and the ELSA server IP address (-l). Here is a screenshot on how to run the script from Windows.

You can also include a file called scanID.txt. The script might throw an error the first time looking for the file, however if you run it again it with the same parameters it should create the file automatically and work fine. The idea behind the scanID.txt file is to give each scan or process data pull a unique scan ID number to more easily track them in ELSA. Every subsequent time you run the script, this ID will increment. I designed the script to work well as a scheduled task in Windows.

Analysis

I tried to capture interesting information about processes that would be helpful to an analyst or security professional. Data such as process name, operating system type, process ID, executable directory, parent process ID and parent process name (if available) are all collected.

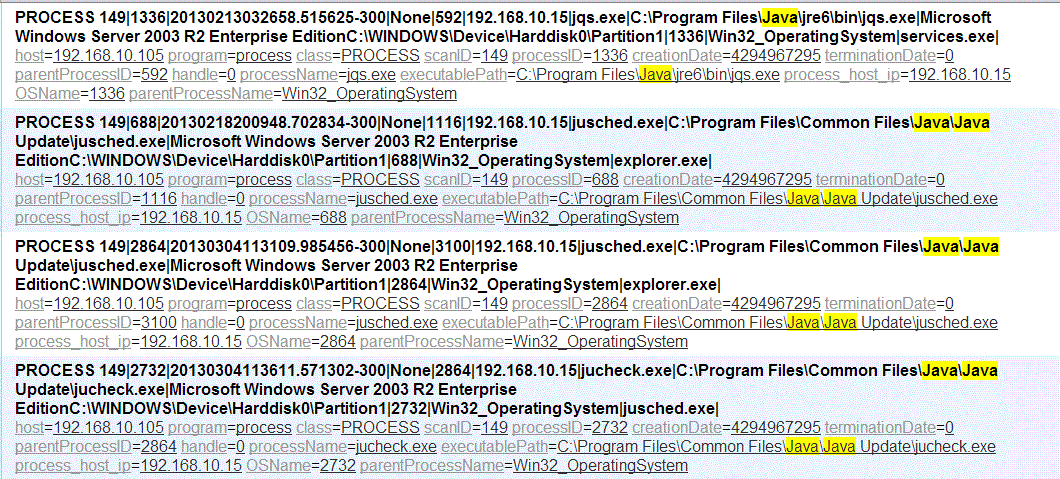

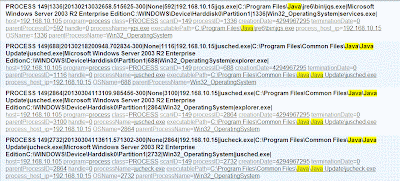

I think the opportunities from a security perspective can be pretty interesting. For example suppose an analyst wants to see all the places where Java is currently running in the environment. You could simply do a query in ELSA such as 'class=PROCESS +java'.

Furthermore, suppose an attacker is hiding a backdoor in an unusual directory. You can search ELSA for process names and sort by directory.

In the example I searched for cmd.exe and noticed it was running in three different places. However, in the last log entry it is not running in the standard directory. Hmm.....

There is a lot more interesting data that can be mined from taking periodic snapshots of processes. An example might be searching for anomalies in parent processes. Searching for a parent process of iexplorer.exe might yield some interesting results. I would love to hear other cool ideas on how to use this data. As always I welcome you feedback.
